Description

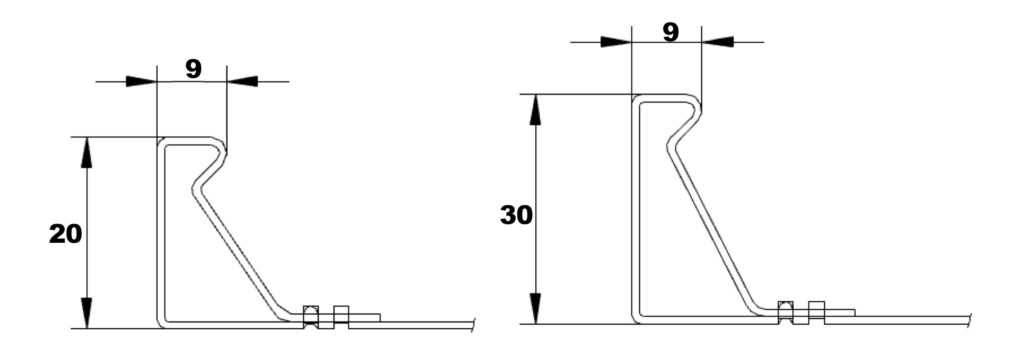

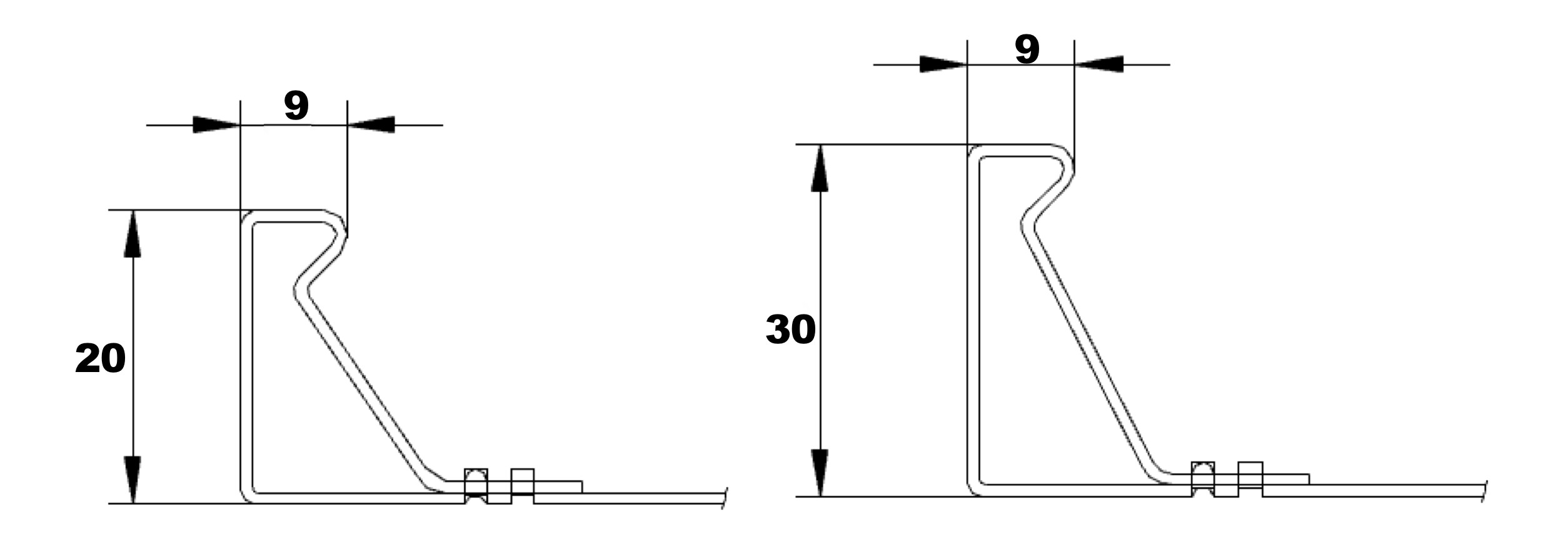

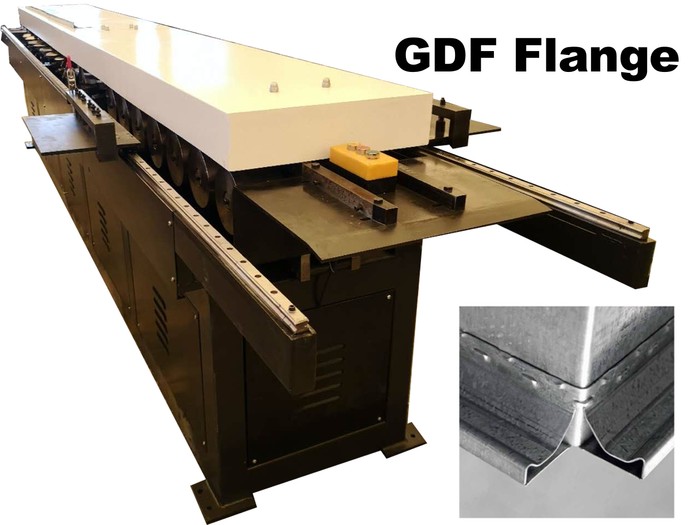

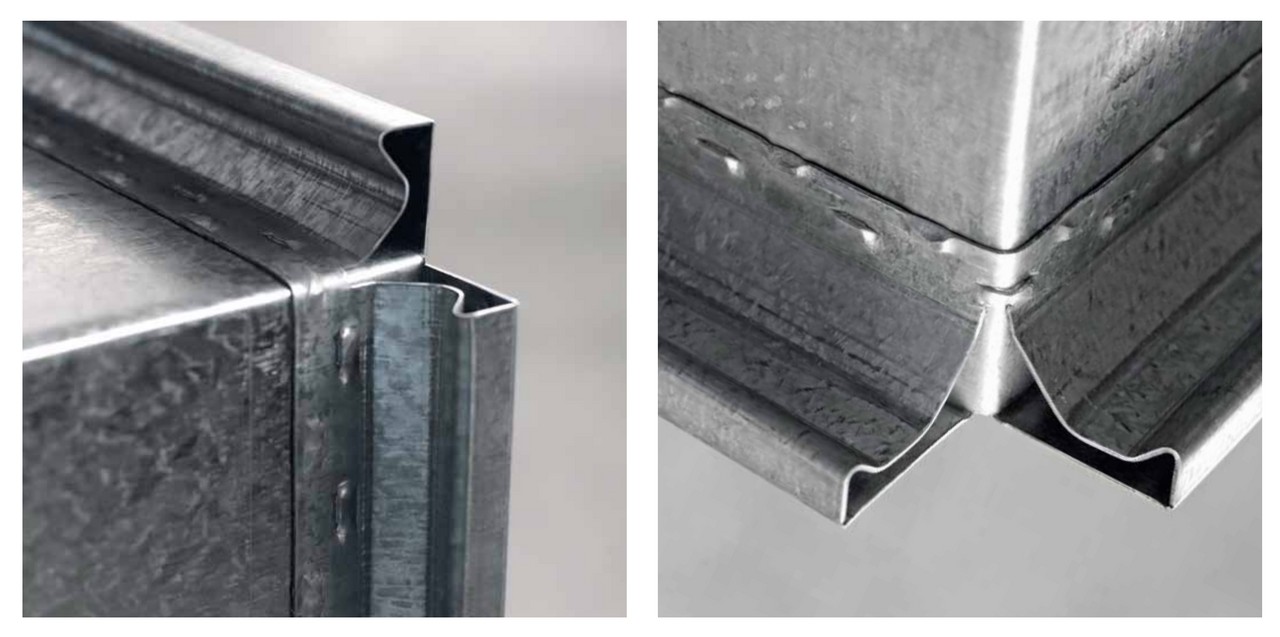

The GDF Flange Machine (model GDF 20/30) is designed for roll forming galvanized sheets with thicknesses from 0.6 to 1.2 mm at a speed of around 8 meters per minute. It features 20 forming steps and 24 stations, with a sturdy wall-type side plate and gear drive. Powered by 5.5KW and requiring 380V three-phase power, it ensures efficient and precise flange production.
Key Features

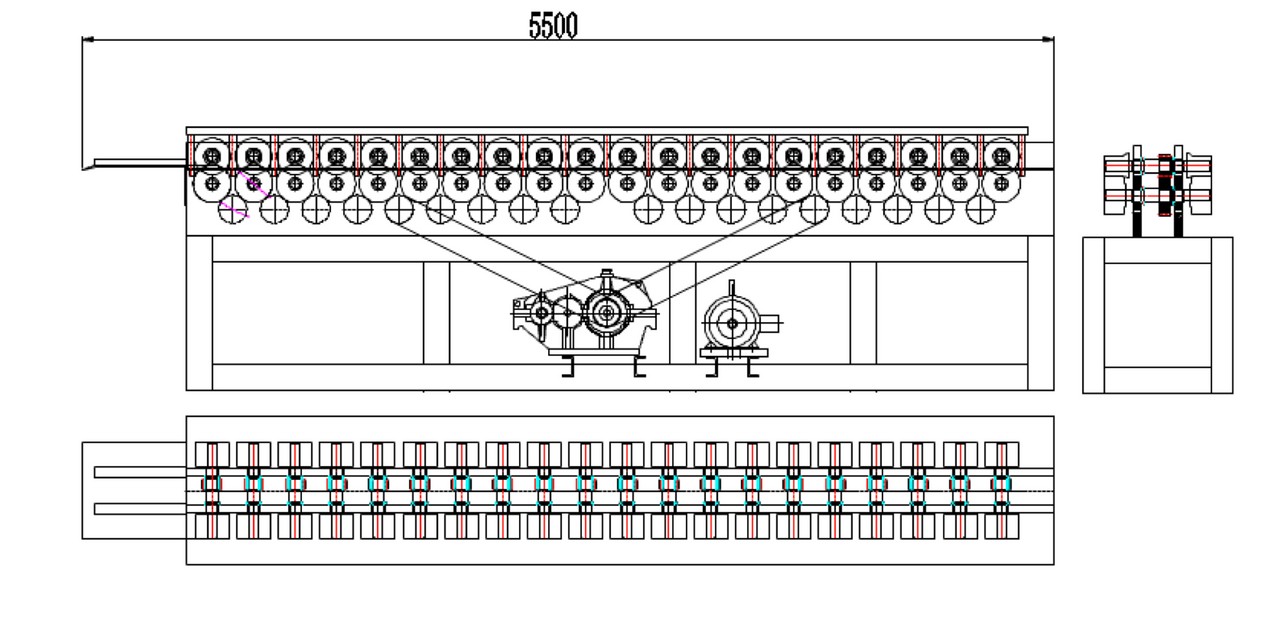

1. EQUIPMENT TECHNIQUE REQUIREMENT
1.1 Equipment technique requirement：
- Equipment floor space: 3.8×0.8×1.3 meters (L×W×H).
- Material feeding orientation: left side entry, right side exit.
Voltage: 380V, 50Hz, 3-phase power supply. - Gear oil type: 18# Hypoid gear oil.
1.2 Equipment main technical parameters
- Material thickness capability: 0.6 to 1.2mm (depending on model, e.g., GDF20/25 for 0.6–0.8mm and GDF30/35 for 0.8–1.2mm).
- Material type: galvanized sheet.
- Production speed: around 8 meters per minute.
- Minimum production length: ≥4000mm.
- Installed power capacity: 5.5KW.
2. ROLL FORMING PRODUCTION SCOPE
- Forming steps: 20 groups.
- Forming stations: 24.
- Forming framework: wall-type side plate with gear drive.
- Side wall thickness: 30mm.
- Roll shaft diameter: 40mm.
- Roller material: Cr12MoV with quenching hardness HRC58-62°.
Technical Specifications
-
Machine BrandRF
-
Machine typeGDF Flange System
-
ApplicationsHVAC
-
Machine ModelGDF 20/30
-
Materials CompatibilityGalvanized steel
-
Sheet Thinkness.6 - 1.2 mm
